Prepainted galvanized steel coil is more than just a technical term—it’s a material that weaves into our daily lives in ways we often miss. It’s the roof panel that keeps rain out of your home, the colorful siding on your neighborhood store, and even the sturdy sign that guides you to the highway. But have you ever wondered how this tough, vibrant material goes from raw earth to something so useful?
Its journey is a mix of geology, chemistry, and human ingenuity. Miners dig up ore from deep underground, and factories transform that ore into steel. Then, scientists and workers add layers of protection and color, turning plain metal into a product that can stand up to rain, sun, and time. Every step, from mining to manufacturing, is a puzzle piece that fits together to create something essential.
Let’s follow this journey. We’ll start with the rocks in the ground and end with the products you see every day. Along the way, you’ll discover how science and hard work turn simple materials into something that shapes our world.
At its core, prepainted galvanized steel coil is steel that’s been through two key steps. First, it gets a zinc coating (galvanizing) to fight rust. Then, it’s painted with durable layers. This one-two punch makes it strong, long-lasting, and ready for all sorts of jobs.
You’ve probably seen it without realizing. It’s the shiny, colorful panels on sheds, the tough siding on warehouses, or even the sleek fronts of vending machines. It looks good, stays strong, and saves money because it doesn’t need constant repainting.
The paint goes on at the factory, not on-site. That means a smoother finish, no drips, and consistent color. Workers don’t have to spend time painting later—they just install it and move on.
Everything starts with iron ore, dug from mines deep in the earth. Crushers break it into chunks, then furnaces melt it at scorching temperatures—over 1,500°C. Add a dash of carbon, and you get steel, strong but prone to rust.
Zinc is next. Most comes from mines too, often mixed with other minerals. It’s purified, melted, and turned into a liquid that bonds to steel. Without zinc, the steel would rust away in no time.
Then there’s the paint. Pigments give it color—blues, reds, earth tones, whatever’s needed. Resins make the paint stick and resist scratches. Solvents keep it liquid until applied, then evaporate. All these ingredients are mixed carefully to ensure the paint lasts.
Factories test every batch of raw materials. Iron ore with too many impurities makes weak steel. Zinc with dirt won’t coat evenly. Paint with bad pigments fades fast. Quality checks here save headaches later.
Steel arrives as huge, heavy coils—like giant rolls of aluminum foil, but much thicker. First, it needs a bath. Acid strips away rust, oil, or dirt—anything that might block the zinc. Then it’s rinsed with clean water and dried.
Next, rollers flatten the steel. They press gently, removing kinks so the surface is smooth. Rough spots would mean thin zinc in some areas, leaving the steel vulnerable.
Now the steel gets its zinc coat. The most common method is hot-dip galvanizing. The coil dips into a tank of molten zinc, about 450°C. When it pulls out, zinc clings to the steel, forming a shiny layer as it cools.
Electrogalvanizing is another way. The steel runs through a zinc-rich solution with an electric current. The current pulls zinc particles onto the steel, creating a thinner, smoother coat. Great for parts that need a sleek look, like appliance panels.
After galvanizing, the steel needs a little prep for paint. It’s rinsed again to remove loose zinc bits. Then, it might get a light sanding—just enough to rough up the surface so paint sticks better.
Some factories use a chemical treatment, like phosphate. It forms tiny crystals on the zinc, giving the paint something to grip. No more peeling or chipping, even in harsh weather.
The first layer of paint is the primer. It’s usually clear or light-colored, and it bonds tightly to the zinc. Think of it as a bridge between the metal and the top coat.
Primer goes on thin—about as thick as a few sheets of paper. Rollers apply it evenly, then heat lamps dry it fast. By the time the coil moves on, the primer is hard and ready for color.
This is where the steel gets its color. The top coat is thicker than primer, loaded with pigment. Rollers or sprayers apply it, and it comes in every shade imaginable. Want a bright red for a barn? A soft gray for an office building? They’ve got you covered.

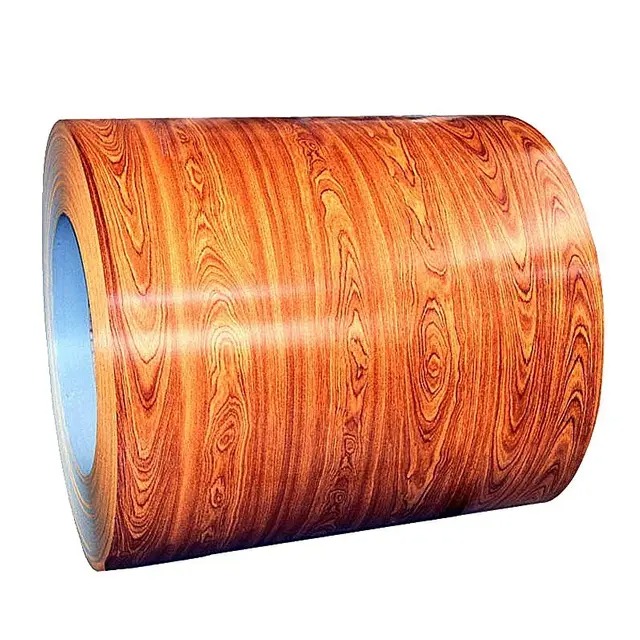

Textured finishes are an option too. Some have a slight grain, like wood, while others are matte to hide fingerprints. It’s all about what the steel will be used for.
The painted coil heads into an oven. Heat—around 200°C—bakes the paint, turning it from liquid to a tough, durable layer. The zinc and paint bond permanently, creating a shield that resists scratches, sun, and rain.
Curing takes just a few minutes. Then the coil cools quickly, thanks to fans. No water here—moisture could make the paint bubble.
No prepainted galvanized steel coil leaves without a check. Cameras scan every inch for thin spots, bubbles, or uneven color. Workers run their hands over the surface to feel for bumps. A small sample gets bent or scratched to test durability.
If a flaw is found, the coil goes back for fixes. Most of the time, though, it’s perfect and ready to go.
The finished coil is rewound into tight rolls, making it easy to ship and store. Cardboard or plastic wraps protect it from dust and moisture. Labels note the color, size, and batch number—so buyers know exactly what they’re getting.
Even a tiny speck of oil can ruin the zinc coat. The acid bath (called pickling) eats away grime but leaves the steel unharmed. Rinsing with deionized water—no minerals—stops spots from forming.
Flattening uses massive rollers. They press the steel gently, removing kinks without stretching it. The goal? A surface so smooth, a level would lie flat with no gaps.
Hot-dip galvanizing gives a thicker zinc layer—great for outdoor use. The molten zinc reacts with the steel, forming a bond that’s stronger than either metal alone. It’s like a suit of armor that grows right on the steel.
Electrogalvanizing is better for indoor parts, like fridge panels. The thin zinc layer keeps them lightweight, and the smooth finish makes painting easier.
Roughing up the zinc (called profiling) is a balancing act. Too rough, and the paint looks uneven. Too smooth, and it peels. Factories use lasers to measure the texture, making sure it’s just right.
The phosphate treatment? It creates tiny crystals on the zinc. Under a microscope, they look like a bed of nails that the paint can wrap around. No more slipping.
Primer often has corrosion fighters, like zinc phosphate. If a scratch goes through the top paint, the primer slows rust. It’s a backup shield, just in case.
Applying primer takes precision. Rollers must press evenly, or the coat gets thick in some areas and thin in others. Sensors check the thickness as the coil moves, adjusting the rollers if needed.
Color matching is an art. Factories use computer tools to mix pigments, but a human eye always double-checks. A shade off by even a little can get rejected.
Textured paints have tiny particles mixed in—like sand or plastic bits. They add grip, which is good for floors or ramps where slipping is a risk.
Ovens are set to exact temperatures. Too cold, and the paint stays soft. Too hot, and it turns brittle. Sensors track the heat, adjusting as the coil moves through.
Cooling uses fans, not water. Water could make the paint bubble. Instead, room-temperature air blows over the coil, bringing it down to a safe handling temperature.
Bend tests are tough. A machine folds a sample 180 degrees—if the paint cracks, the batch needs more curing time. Scratch tests use a metal probe to see how much force it takes to reach the zinc.
Workers also check for “fish eyes”—tiny bubbles from dust. They’re rare, but even one means the coil gets reworked.
Rewinding machines pull the coil tight, with just enough tension to avoid creases. Too loose, and it unrolls during shipping. Too tight, and the paint cracks.
Packaging includes a moisture barrier—like waxed paper—to stop condensation. Even a little water during shipping can spot the paint. Labels also note storage tips: cool, dry places work best.
This is the most common top coat. It’s affordable, comes in every color, and resists fading in sunlight. Great for houses, sheds, and indoor furniture. It’s not the toughest, though—scratches easier than other options.
Add a little silicon to polyester, and it gets stronger. It handles high heat—good for metal roofs in sunny areas—and stands up to hail better. It’s pricier than regular polyester but worth it for harsh climates.
The heavyweight champion. PVDF resists salt, acid rain, and even industrial fumes. It’s used on skyscrapers, chemical plants, and coastal buildings. It costs more, but it can last 30 years without fading or chipping.
Prepainted galvanized steel coil is everywhere. Houses use it for siding, gutters, and roofing. Factories turn it into machine covers and storage lockers. Even cars have it—think of the shiny panels on a truck bed or a trailer.
Outdoor furniture loves it. Tables and chairs made from this steel don’t need yearly painting. They stay bright through rain and snow, and a quick wipe with a cloth keeps them looking new.
Signs are another big user. The paint doesn’t fade in sunlight, so logos stay bold for years. Street signs, billboards, and storefront letters often rely on it.
Q: How long does prepainted galvanized steel last?
A: 15–30 years, depending on the weather. Coastal areas with salt air might see 15, while dry inland regions get 30+.
Q: Can it be welded?
A: Yes, but the heat burns off the zinc and paint around the weld. Those spots need touch-up paint to stop rust.
Q: Is it recyclable?
A: Absolutely. Old coils get melted down, and the zinc and steel are reused. No waste.
Q: Can I paint over it?
A: You can, but clean it first. Sand the surface lightly to help the new paint stick—then prime and repaint.
Q: How much does it cost?
A: More than regular steel, but less than stainless. Expect to pay 20–50% extra, but it saves money on repainting later.
